Trend KWJ900 Kitchen Worktop Jig – 900mm

The Trend Kitchen Worktop Jig is a hard-wearing, solid laminate, 12mm thick jig that cuts both parts of the joint in 15 minutes including setting up. Can cut worktops up to 900mm wide.

Features and Benefits:

• Left and right hand corners
• 400mm radius peninsular joint
• 45° end cut with slight radius
• 45° trade corner
• 100mm radius corner
• 40mm radius corner
• 35mm kitchen door hole
• 3/4inch BSP hole for mixer taps
• Engraved lines for 65mm bolts and worktop cross-cut
• 6 x 10mm diameter ABS plastic pins with tapered shoulders for a tight fit
• 3 point pin contact to ensure ease of setting up
• Three open-ended bolt recesses (dog bone style) for 150 mm bolts
• Engraved markings for identification of pin holes

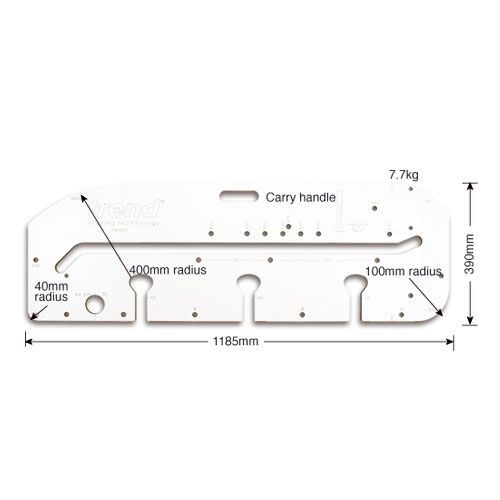

Specifications:

Length: 1185 mm
Width: 390 mm
Thickness: 12 mm
Weight: 7.7 Kg
End cut: 45 degrees
Corner radius: 40 mm
Corner radius: 100 mm
Corner radius: 400 mm
Corner mitre joint: 45 degrees

What’s Included:

1 x Trend KWJ900 Kitchen Worktop Jig
6 x ABS plastic pins
